السؤال

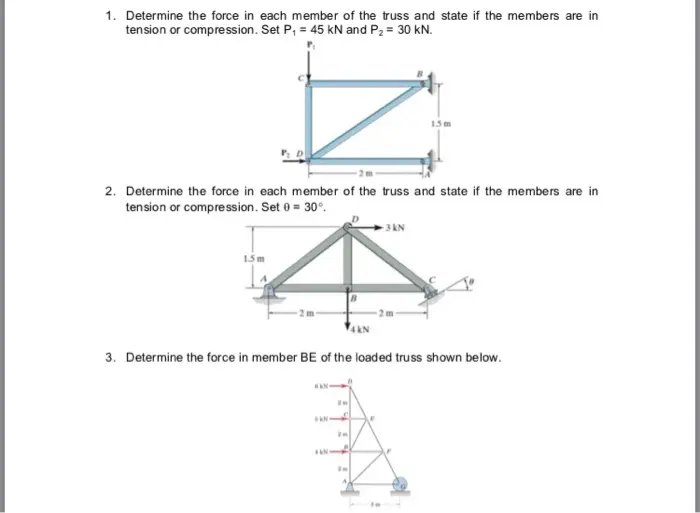

Transcribed Image Text:
1. Determine the force in each member of the truss and state if the members are in
tension or compression. Set P₁ = 45 kN and P₂ = 30 kN.
15m
2. Determine the force in each member of the truss and state if the members are in
tension or compression. Set 0 = 30°.
1.5m
3kN
A
3. Determine the force in member BE of the loaded truss shown below.
SAN-
SAN-
AN
