السؤال
Transcribed Image Text:

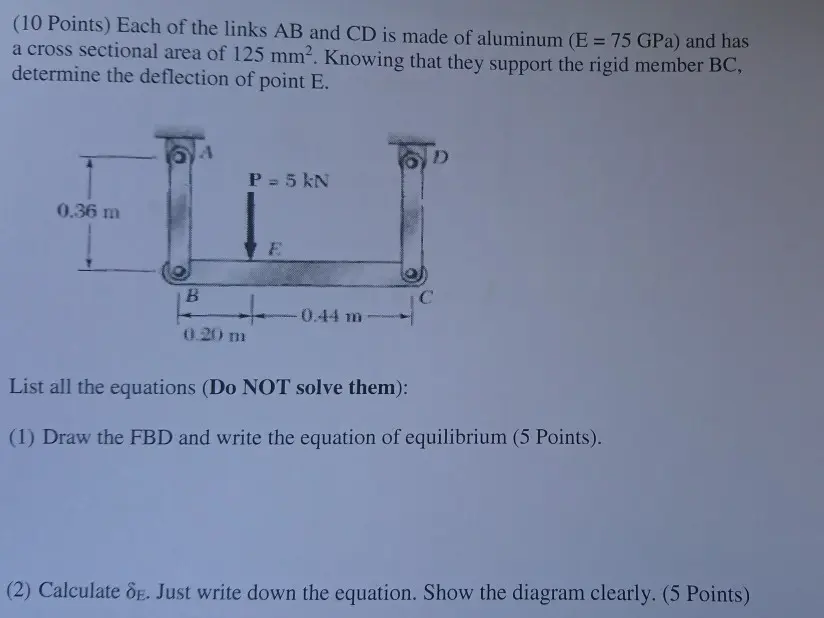

(10 Points) Each of the links AB and CD is made of aluminum (E = 75 GPa) and has
a cross sectional area of 125 mm². Knowing that they support the rigid member BC,
determine the deflection of point E.
0.36 m
A
D
P = 5 kN
B
+
0.20 m
0.44 m
List all the equations (Do NOT solve them):
C
(1) Draw the FBD and write the equation of equilibrium (5 Points).
(2) Calculate 8E. Just write down the equation. Show the diagram clearly. (5 Points)
