السؤال
Transcribed Image Text:

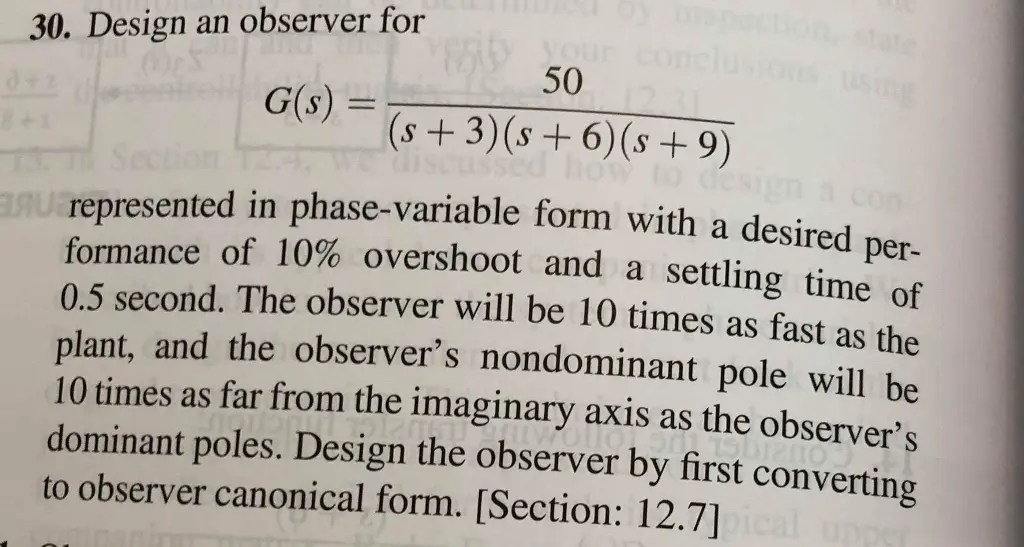

30. Design an observer for
G(s) =
Section
inspection, state
your conclusions using
50
12.31
(s+3)(s+6)(s+9)
iscussed how to design
con
Я represented in phase-variable form with a desired per-
formance of 10% overshoot and a settling time of
0.5 second. The observer will be 10 times as fast as the
plant, and the observer's nondominant pole will be
10 times as far from the imaginary axis as the observer's
dominant poles. Design the observer by first converting
y axis as the o
to observer canonical form. [Section: 12.7]pical upper
