السؤال
Transcribed Image Text:

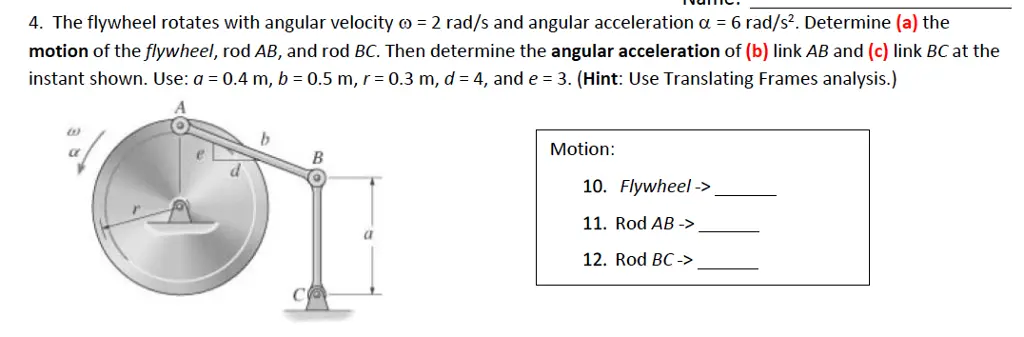

4. The flywheel rotates with angular velocity = 2 rad/s and angular acceleration α = 6 rad/s². Determine (a) the
motion of the flywheel, rod AB, and rod BC. Then determine the angular acceleration of (b) link AB and (c) link BC at the
instant shown. Use: a = 0.4 m, b = 0.5 m, r = 0.3 m, d = 4, and e = 3. (Hint: Use Translating Frames analysis.)
a
B
Motion:
10. Flywheel ->
11. Rod AB->
a
12. Rod BC->
