السؤال
Transcribed Image Text:

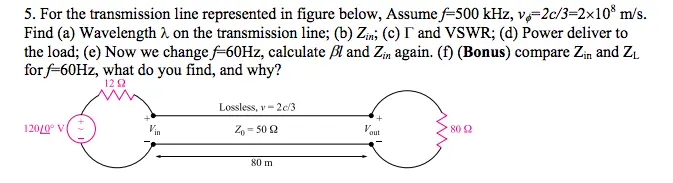

5. For the transmission line represented in figure below, Assume f-500 kHz, v-2c/3=2×108 m/s.
Find (a) Wavelength λ on the transmission line; (b) Zin; (c) I and VSWR; (d) Power deliver to
the load; (e) Now we change f-60Hz, calculate ẞl and Zin again. (f) (Bonus) compare Zin and ZL
for f=60Hz, what do you find, and why?
129
120/0° V
Lossless, v-2c/3
Z-502
80 m
80
out
