السؤال
Transcribed Image Text:

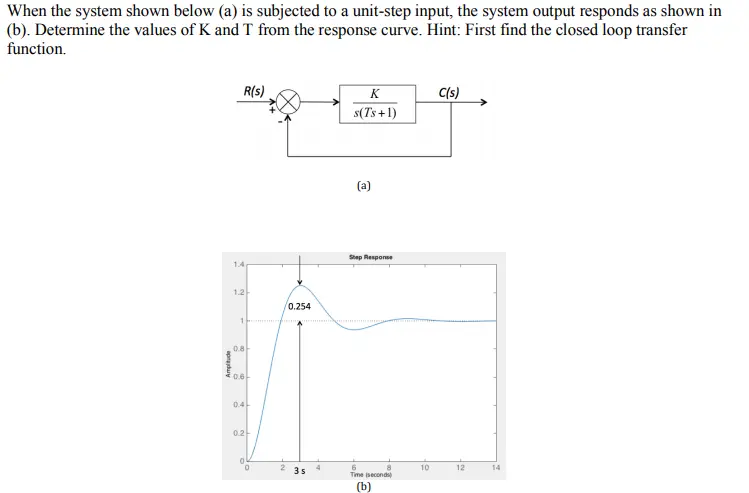

When the system shown below (a) is subjected to a unit-step input, the system output responds as shown in
(b). Determine the values of K and T from the response curve. Hint: First find the closed loop transfer
function.
Amplitude
1.4
1.2
0.8
0.6
0.4
0.2-
1
R(s)
K
C(s)
s(Ts+1)
0.254
(a)
Step Response
0
°
2
3s
4
6
8
10
12
14
Time second
(b)
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
