السؤال

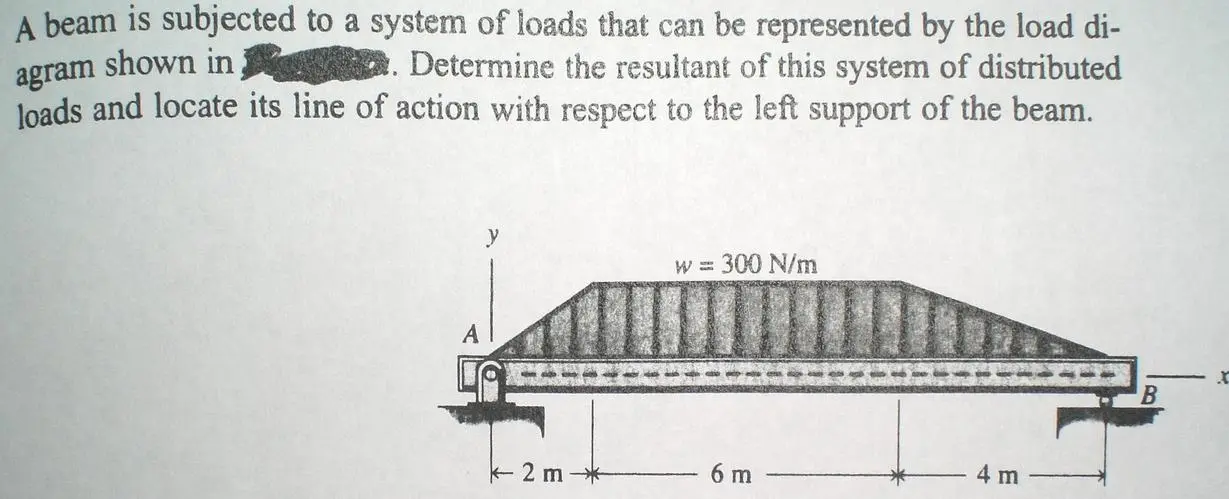

Transcribed Image Text:
agram
A beam is subjected to a system of loads that can be represented by the load di-
shown in
2. Determine the resultant of this system of distributed
loads and locate its line of action with respect to the left support of the beam.
A
y
w = 300 N/m
2 m
6 m
4 m
B
