السؤال
Transcribed Image Text:

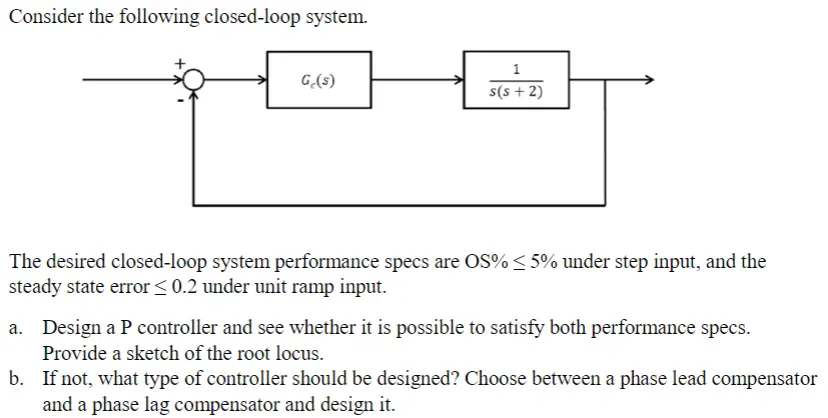

Consider the following closed-loop system.
1
G₁(s)
s(s+2)
The desired closed-loop system performance specs are OS% ≤5% under step input, and the
steady state error ≤0.2 under unit ramp input.
a. Design a P controller and see whether it is possible to satisfy both performance specs.
Provide a sketch of the root locus.
b. If not, what type of controller should be designed? Choose between a phase lead compensator
and a phase lag compensator and design it.
