السؤال
Transcribed Image Text:

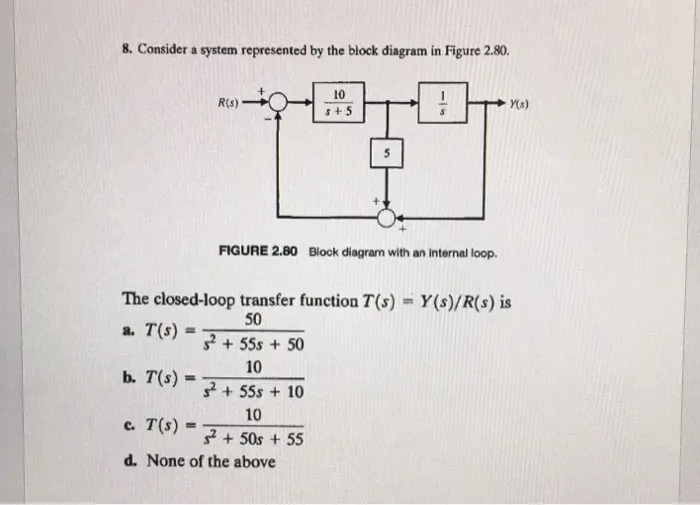

8. Consider a system represented by the block diagram in Figure 2.80.
10
R(s)
s+5
Y(s)
FIGURE 2.80 Block diagram with an internal loop.
The closed-loop transfer function T(s) = Y(s)/R(s) is
a. T(s)
50
= s²+ 55s + 50
10
b. T(s)+55s + 10
=
10
c. T(s) + 50s + 55
d. None of the above
