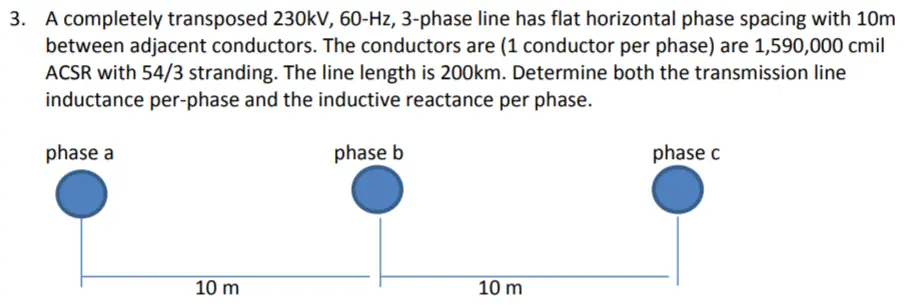

3. A completely transposed 230kV, 60-Hz, 3-phase line has flat horizontal phase spacing with 10m between adjacent conductors. The conductors are (1 conductor per phase) are 1,590,000 cmil ACSR with 54/3 stranding. The line length is 200km. Determine both the transmission line inductance per-phase and the inductive reactance per phase. phase a phase b phase c 10 m 10 m 4. In problem (3), each of the 1,590,000 cmil conductors is replaced by two 795,000 cmil ACSR 26/2 as shown in Figure below. Bundle spacing is 0.4m. Flat horizontal spacing is retained with 10m between adjacent bundle centers. Calculate the line inductance and inductive reactance per-phase and compare to those obtained in problem (3). 0.4 m 10 m 10 m
