السؤال
Transcribed Image Text:
2)

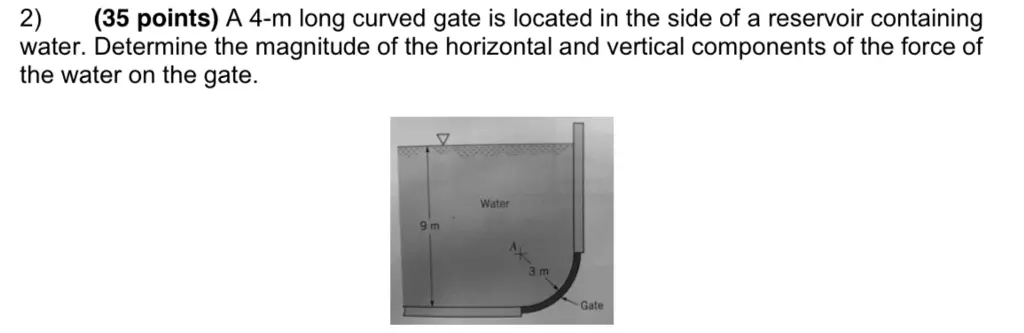

(35 points) A 4-m long curved gate is located in the side of a reservoir containing
water. Determine the magnitude of the horizontal and vertical components of the force of
the water on the gate.
V
9 m
Water
X
3 m
Gate
