السؤال
Transcribed Image Text:

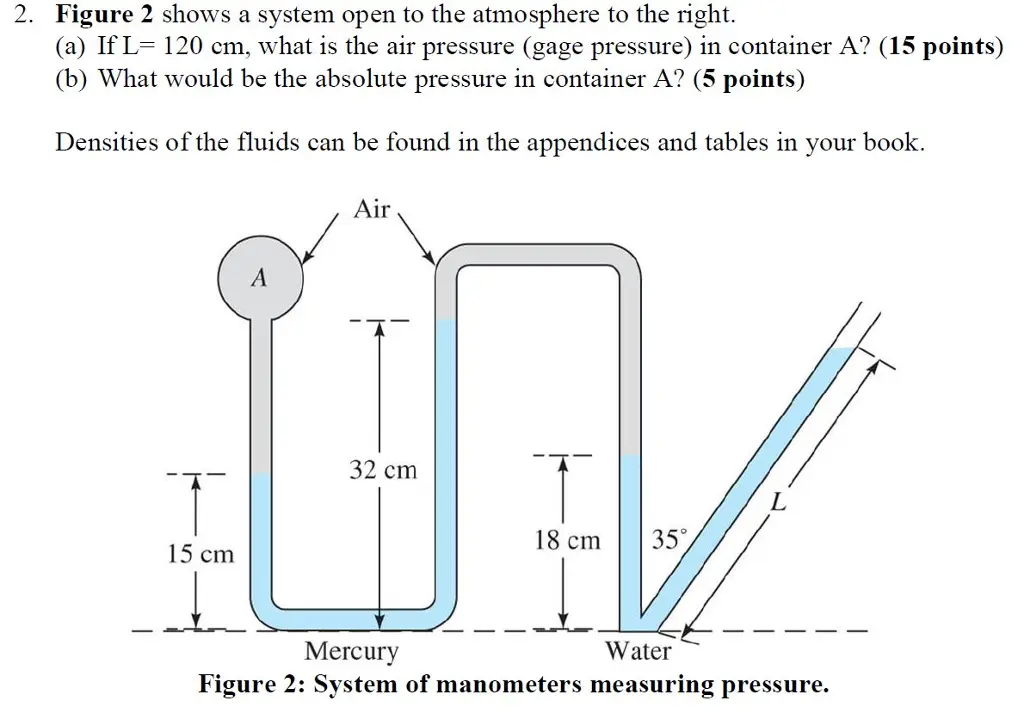

2. Figure 2 shows a system open to the atmosphere to the right.
(a) If L=120 cm, what is the air pressure (gage pressure) in container A? (15 points)
(b) What would be the absolute pressure in container A? (5 points)
Densities of the fluids can be found in the appendices and tables in
Air
your
book.
15 cm
32 cm
Mercury
18 cm
35°
Water
Figure 2: System of manometers measuring pressure.
