السؤال
Transcribed Image Text:

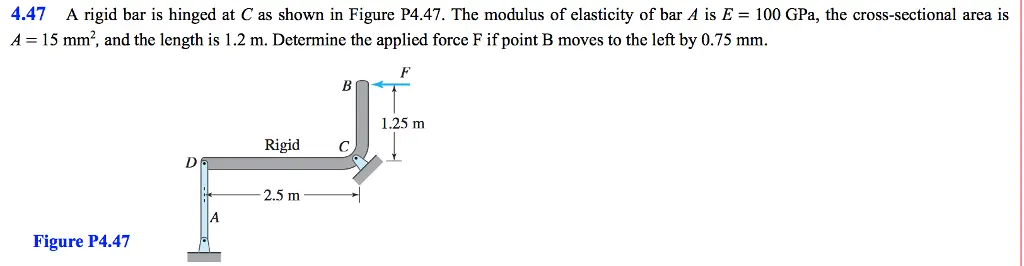

4.47 A rigid bar is hinged at C as shown in Figure P4.47. The modulus of elasticity of bar A is E = 100 GPa, the cross-sectional area is
A = 15 mm², and the length is 1.2 m. Determine the applied force F if point B moves to the left by 0.75 mm.
B
1.25 m
Rigid
C
D
2.5 m
A
Figure P4.47
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
