السؤال
Transcribed Image Text:

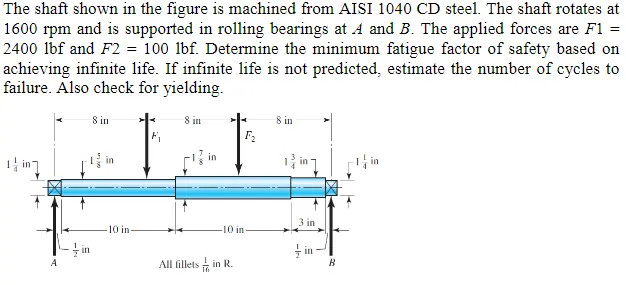

The shaft shown in the figure is machined from AISI 1040 CD steel. The shaft rotates at
1600 rpm and is supported in rolling bearings at A and B. The applied forces are F1 =
2400 lbf and F2 = 100 lbf. Determine the minimum fatigue factor of safety based on
achieving infinite life. If infinite life is not predicted, estimate the number of cycles to
failure. Also check for yielding.
8 in
8 in
A
-IN
in
-10 in
8 in
F₂
in
3 in
10 in
All fillets in R.
in
B
