Transcribed Image Text:

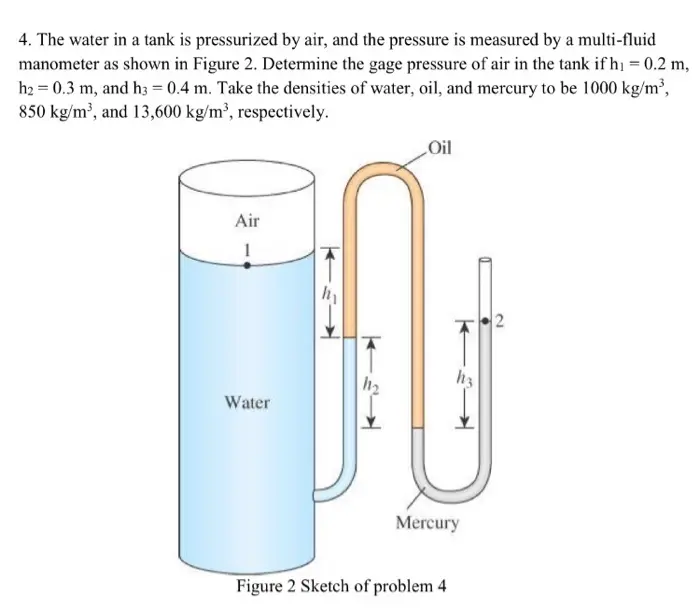

4. The water in a tank is pressurized by air, and the pressure is measured by a multi-fluid
manometer as shown in Figure 2. Determine the gage pressure of air in the tank if h₁ = 0.2 m,
h2 = 0.3 m, and h3 = 0.4 m. Take the densities of water, oil, and mercury to be 1000 kg/m³,
850 kg/m³, and 13,600 kg/m³, respectively.
Air
1
Oil
Water
h3
Mercury
Figure 2 Sketch of problem 4
