السؤال
Transcribed Image Text:

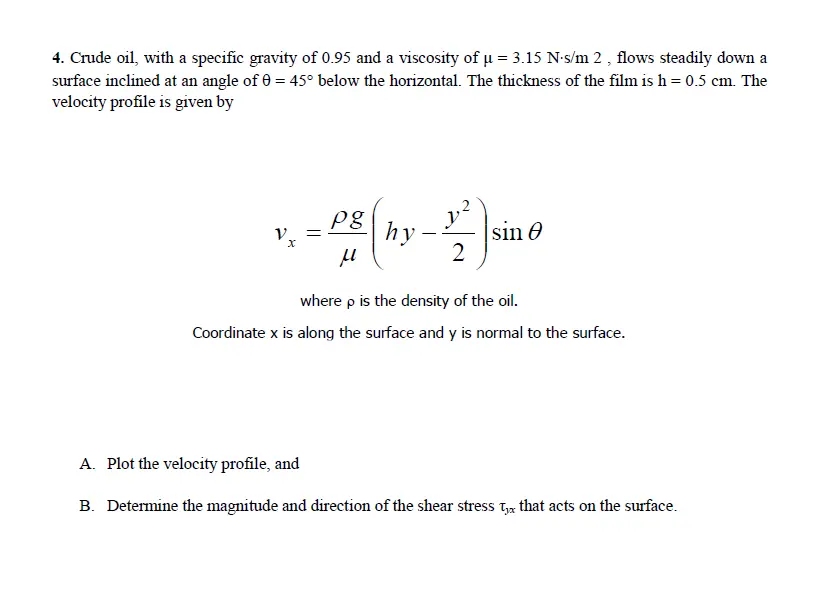

4. Crude oil, with a specific gravity of 0.95 and a viscosity of µ = 3.15 N-s/m 2, flows steadily down a
surface inclined at an angle of 0 = 45° below the horizontal. The thickness of the film is h = 0.5 cm. The
velocity profile is given by
=
x
-
ہے۔ وہ ہے
pg
hy
μ
sin O
2
where p is the density of the oil.
Coordinate x is along the surface and y is normal to the surface.
A. Plot the velocity profile, and
B. Determine the magnitude and direction of the shear stress x that acts on the surface.
