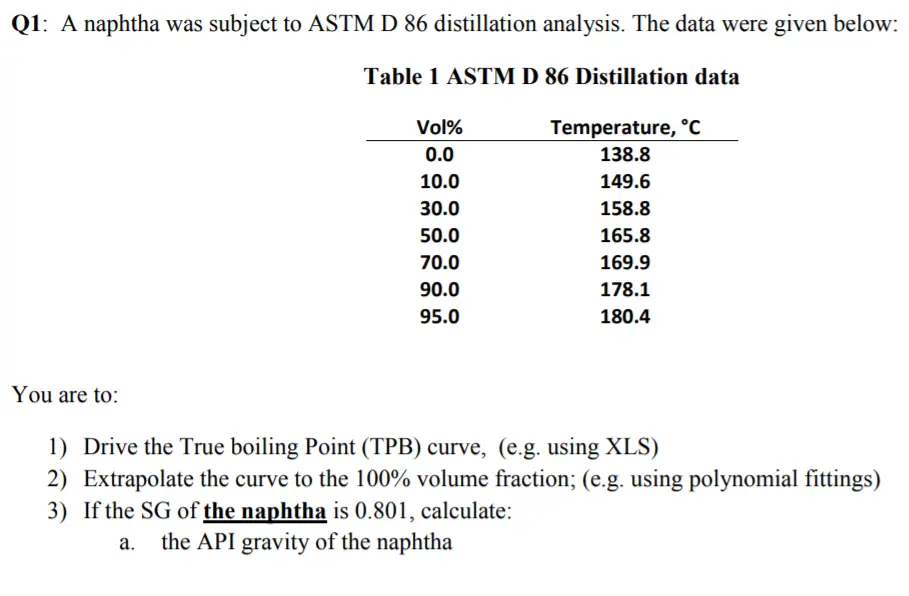

Q1: A naphtha was subject to ASTM D 86 distillation analysis. The data were given below: Table 1 ASTM D 86 Distillation data You are to: Vol% Temperature, °C 0.0 138.8 10.0 149.6 30.0 158.8 50.0 165.8 70.0 169.9 90.0 178.1 95.0 180.4 1) Drive the True boiling Point (TPB) curve, (e.g. using XLS) 2) Extrapolate the curve to the 100% volume fraction; (e.g. using polynomial fittings) 3) If the SG of the naphtha is 0.801, calculate: a. the API gravity of the naphtha b. Calculate and plot the SG for each fraction listed in Table 1 c. Plot the volume fraction versus the SG of each fraction into a figure d. The K value e. The Molecular Mass of each fraction in Table 1. f. The viscosity @ 37.8°C (assuming the parameters can be taken from the fractions at 30°C in Table 1)
