السؤال

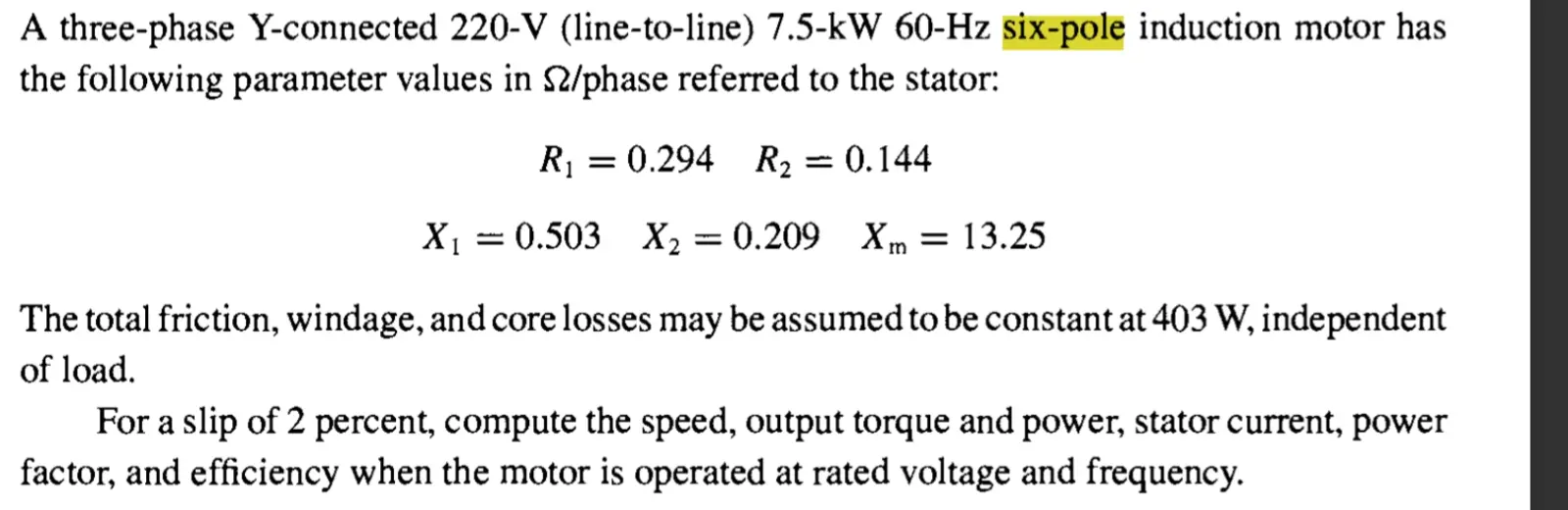

Transcribed Image Text:
A three-phase Y-connected 220-V (line-to-line) 7.5-kW 60-Hz six-pole induction motor has
the following parameter values in S2/phase referred to the stator:
R₁ = 0.294 R₂ = 0.144
X₁ = 0.503 X2 = 0.209 Xm = 13.25
The total friction, windage, and core losses may be assumed to be constant at 403 W, independent
of load.
For a slip of 2 percent, compute the speed, output torque and power, stator current, power
factor, and efficiency when the motor is operated at rated voltage and frequency.
