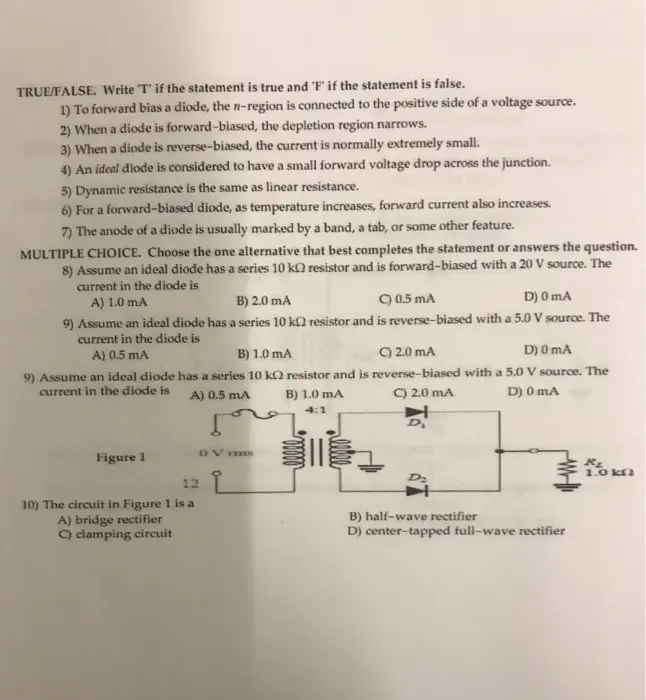

TRUE/FALSE. Write "T" if the statement is true and 'F' if the statement is false. 1) To forward bias a diode, the n-region is connected to the positive side of a voltage source. 2) When a diode is forward-biased, the depletion region narrows. 3) When a diode is reverse-biased, the current is normally extremely small. 4) An ideal diode is considered to have a small forward voltage drop across the junction. 5) Dynamic resistance is the same as linear resistance. 6) For a forward-biased diode, as temperature increases, forward current also increases. 7) The anode of a diode is usually marked by a band, a tab, or some other feature. MULTIPLE CHOICE. Choose the one alternative that best completes the statement or answers the question. 8) Assume an ideal diode has a series 10 k resistor and is forward-biased with a 20 V source. The current in the diode is A) 1.0 mA B) 2.0 mA C) 0.5 mA D) 0 mA 9) Assume an ideal diode has a series 10 k resistor and is reverse-biased with a 5.0 V source. The current in the diode is A) 0.5 mA B) 1.0 mA C) 2.0 mA C) 2.0 mA D) 0 mA 9) Assume an ideal diode has a series 10 kQ2 resistor and is reverse-biased with a 5.0 V source. The current in the diode is A) 0.5 mA B) 1.0 mA 4:1 D) 0 mA Figure 1 12 10) The circuit in Figure 1 is a A) bridge rectifier C) clamping circuit OV rms 本 B) half-wave rectifier D) center-tapped full-wave rectifier RE 1.0 k
