السؤال
Transcribed Image Text:

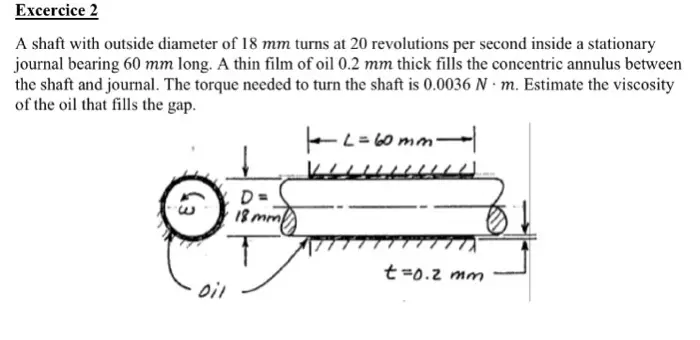

Excercice 2
A shaft with outside diameter of 18 mm turns at 20 revolutions per second inside a stationary
journal bearing 60 mm long. A thin film of oil 0.2 mm thick fills the concentric annulus between
the shaft and journal. The torque needed to turn the shaft is 0.0036 N m. Estimate the viscosity
of the oil that fills the gap.
(3
Oil
D =
18mm
T
2=60mm-
t=0.2 mm
