Transcribed Image Text:

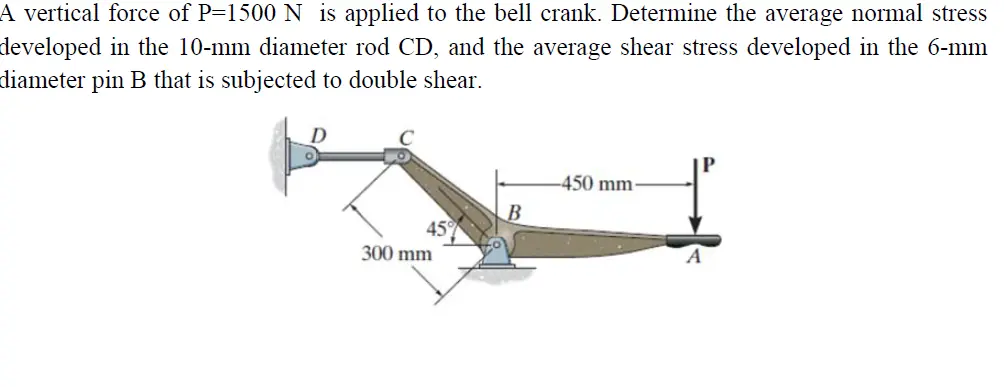

A vertical force of P=1500 N is applied to the bell crank. Determine the average normal stress
developed in the 10-mm diameter rod CD, and the average shear stress developed in the 6-mm
diameter pin B that is subjected to double shear.
300 mm
45%
B
-450 mm-
