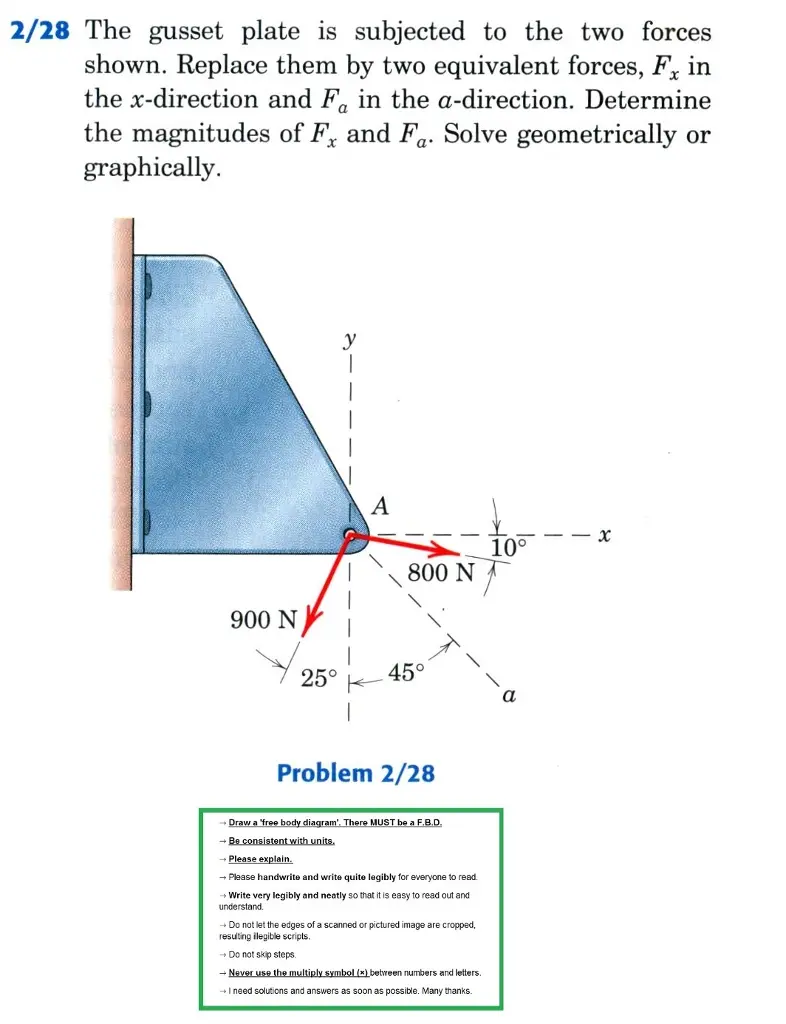

2/28 The gusset plate is subjected to the two forces shown. Replace them by two equivalent forces, Fx in the x-direction and Fa in the a-direction. Determine the magnitudes of Fx and Fa. Solve geometrically or graphically. A X 10° 800 N 900 N 25° 45° Problem 2/28 Draw a free body diagram'. There MUST be a F.B.D. Be consistent with units. Please explain. → Please handwrite and write quite legibly for everyone to read. → Write very legibly and neatly so that it is easy to read out and understand. Do not let the edges of a scanned or pictured image are cropped, resulting illegible scripts. Do not skip steps. → Never use the multiply symbol (x) between numbers and letters. →I need solutions and answers as soon as possible. Many thanks.
