السؤال

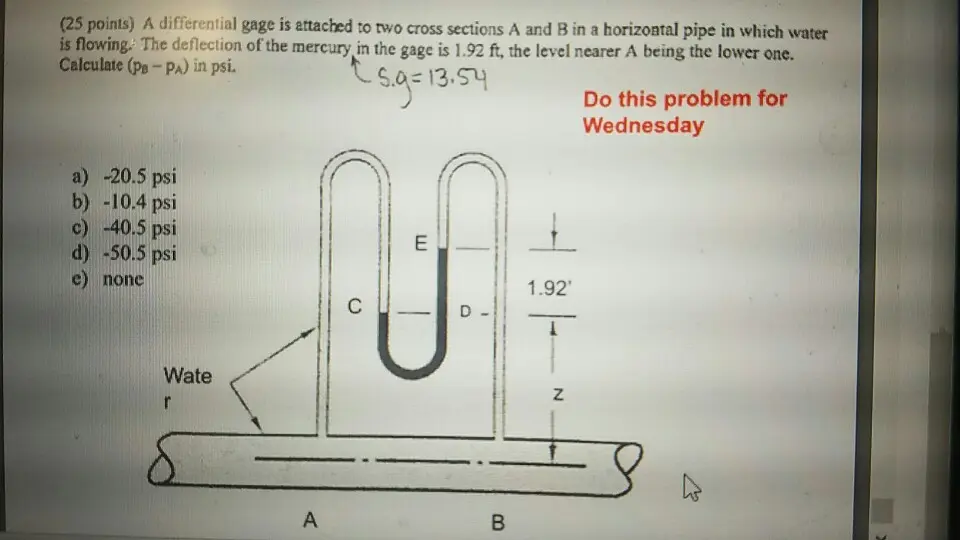

Transcribed Image Text:
(25 points) A differential gage is attached to two cross sections A and B in a horizontal pipe in which water
is flowing. The deflection of the mercury in the gage is 1.92 ft, the level nearer A being the lower one.
Calculate (PB-PA) in psi.
5.9=13.54
Do this problem for
Wednesday
a) -20.5 psi
b) -10.4 psi
c) -40.5 psi
d) -50.5 psi
e) none
Wate
r
E
C
D
A
B
1.92'
Z
S
