السؤال
Transcribed Image Text:

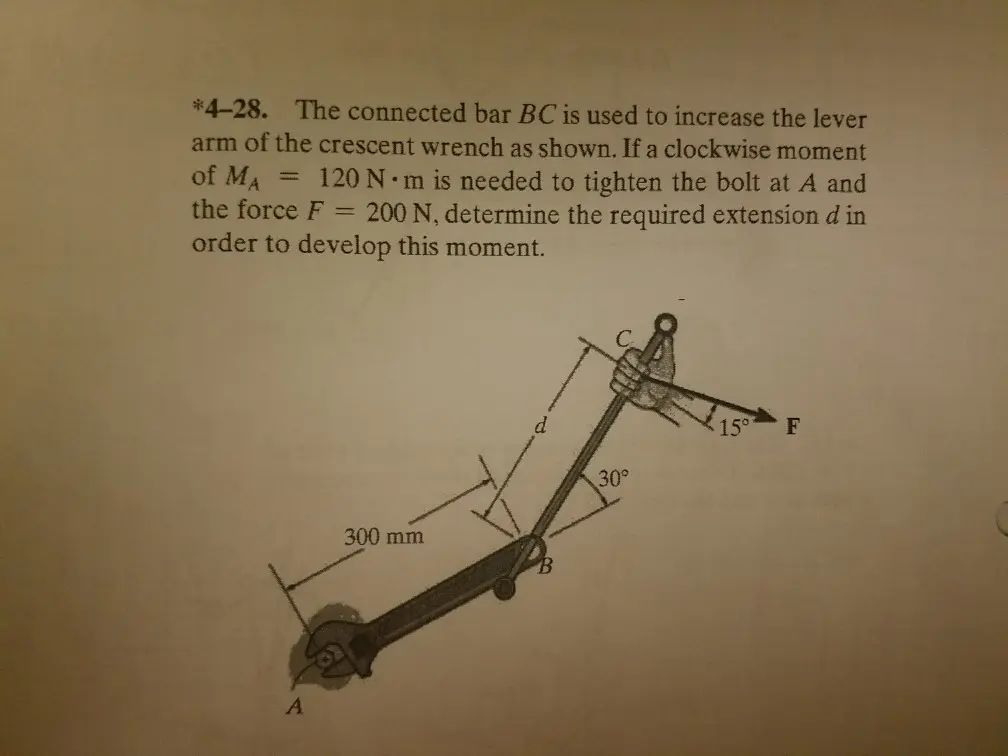

*4-28. The connected bar BC is used to increase the lever
arm of the crescent wrench as shown. If a clockwise moment
120 N·m is needed to tighten the bolt at A and
of MA
=
the force F =
200 N, determine the required extension d in
order to develop this moment.
A
300 mm
15°
F
30°
