السؤال
Transcribed Image Text:

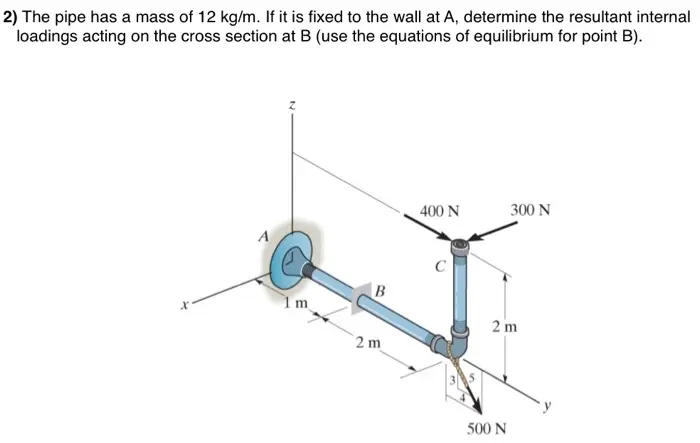

2) The pipe has a mass of 12 kg/m. If it is fixed to the wall at A, determine the resultant internal
loadings acting on the cross section at B (use the equations of equilibrium for point B).
A
x
1 m
B
400 N
300 N
2 m
2 m
500 N
