السؤال

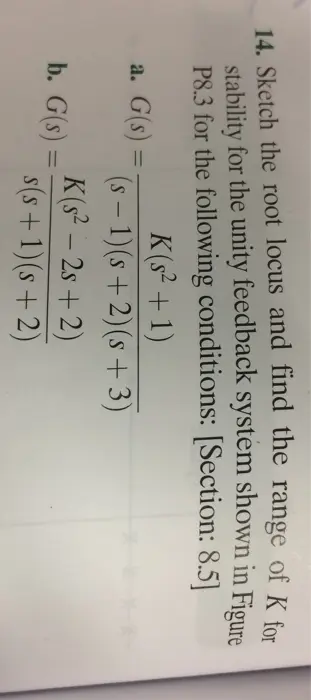

Transcribed Image Text:
14. Sketch the root locus and find the range of K for
stability for the unity feedback system shown in Figure
P8.3 for the following conditions: [Section: 8.5]
2
K(s²+1)
(s-1)(s+2)(s+3)
K(s² - 2s+2)
a. G(s) =
b. G(s) =
s(s+1)(s+2)
