السؤال

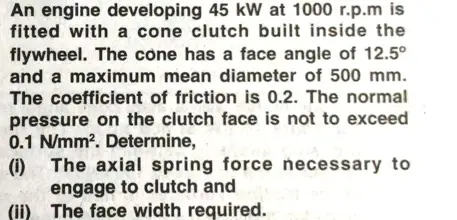

Transcribed Image Text:
An engine developing 45 kW at 1000 r.p.m is
fitted with a cone clutch built inside the
flywheel. The cone has a face angle of 12.5°
and a maximum mean diameter of 500 mm.
The coefficient of friction is 0.2. The normal
pressure on the clutch face is not to exceed
0.1 N/mm². Determine,
(i) The axial spring force necessary to
engage to clutch and
(ii) The face width required.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
