السؤال
Transcribed Image Text:
Z

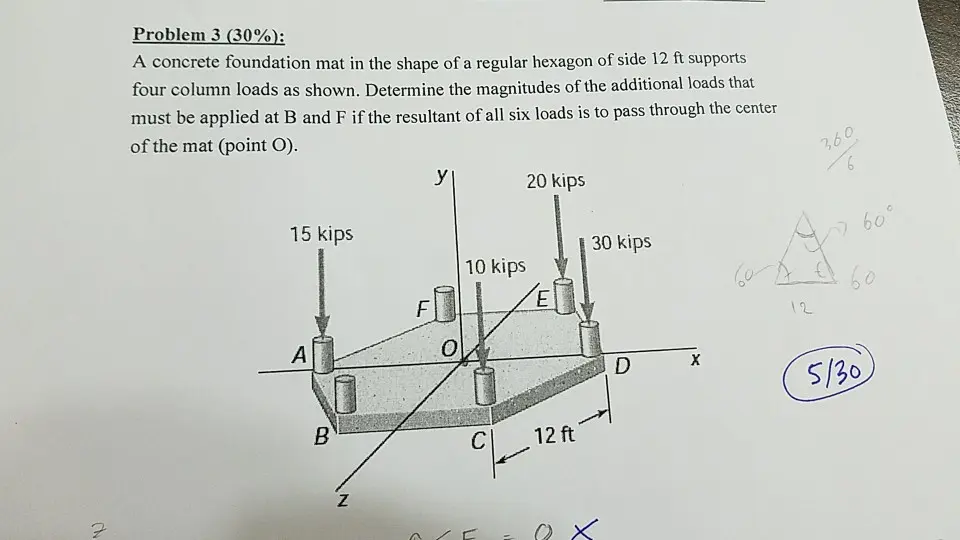

Problem 3 (30%):
A concrete foundation mat in the shape of a regular hexagon of side 12 ft supports
four column loads as shown. Determine the magnitudes of the additional loads that
must be applied at B and F if the resultant of all six loads is to pass through the center
of the mat (point O).
360
6
y
20 kips
60°
15 kips
30 kips
10 kips
60€60
E
12
A
F
0
B
C
다
12 ft
Z
D
5/30
