السؤال

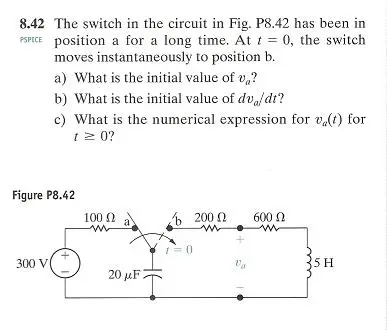

Transcribed Image Text:
8.42 The switch in the circuit in Fig. P8.42 has been in
PSPICE position a for a long time. At t = 0, the switch
moves instantaneously to position b.
a) What is the initial value of v₁?
b) What is the initial value of dva/dt?
c) What is the numerical expression for v₂(t) for
1 ≥ 0?
Figure P8.42
100 Ω
w
b 200
600 Ω
300 V
20 μF
5 H
