السؤال

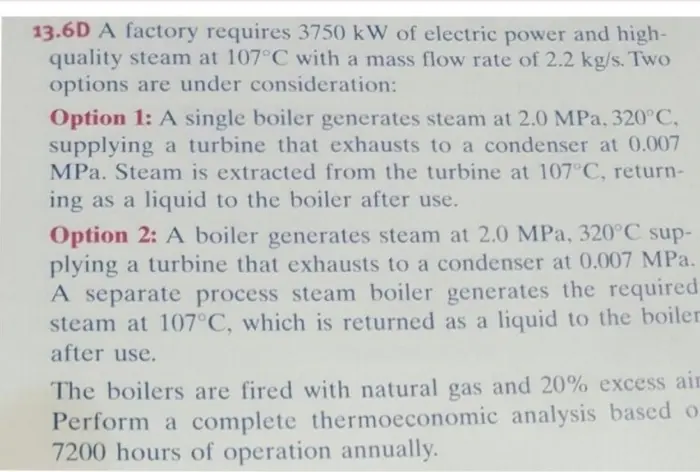

Transcribed Image Text:
13.6D A factory requires 3750 kW of electric power and high-
quality steam at 107°C with a mass flow rate of 2.2 kg/s. Two
options are under consideration:
Option 1: A single boiler generates steam at 2.0 MPa, 320°C,
supplying a turbine that exhausts to a condenser at 0.007
MPa. Steam is extracted from the turbine at 107°C, return-
ing as a liquid to the boiler after use.
Option 2: A boiler generates steam at 2.0 MPa, 320°C sup-
plying a turbine that exhausts to a condenser at 0.007 MPa.
A separate process steam boiler generates the required
steam at 107°C, which is returned as a liquid to the boiler
after use.
The boilers are fired with natural gas and 20% excess aim
Perform a complete thermoeconomic analysis based o
7200 hours of operation annually.
