السؤال
Transcribed Image Text:

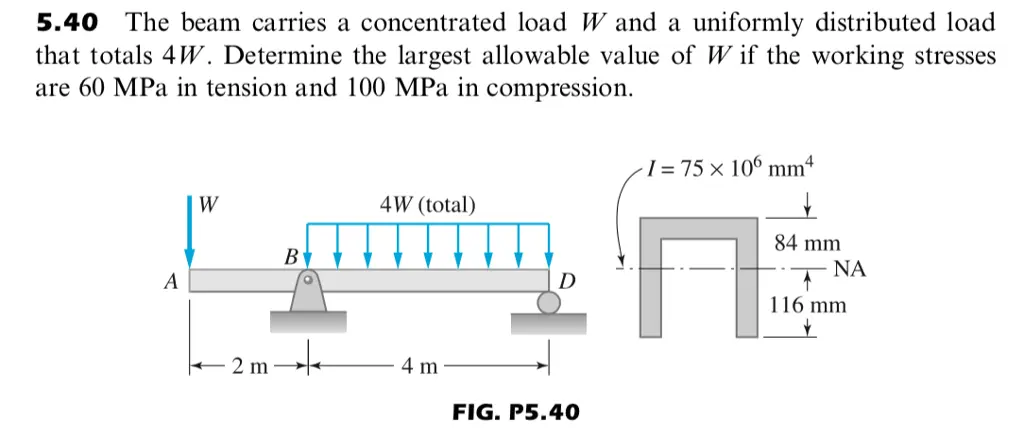

5.40 The beam carries a concentrated load W and a uniformly distributed load
that totals 4W. Determine the largest allowable value of W if the working stresses
are 60 MPa in tension and 100 MPa in compression.
A
W
B
4W (total)
2 m
4 m
I-75 x 106 mm²
84 mm
ΝΑ
D
116 mm
FIG. P5.40
