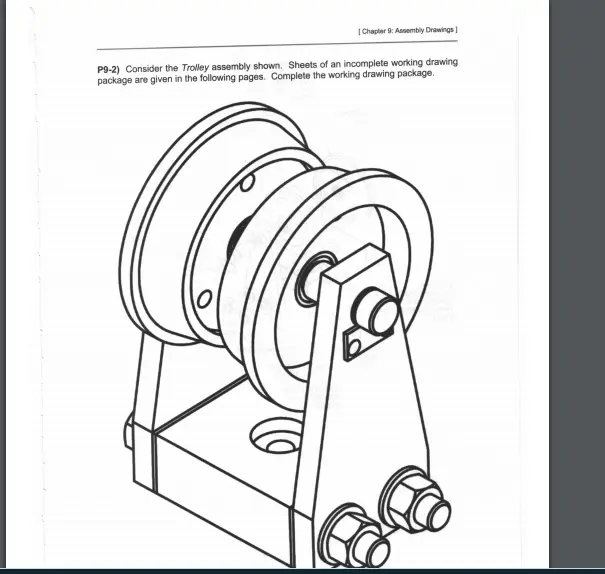

Chapter 9: Assembly Drawings] P9-2) Consider the Trolley assembly shown. Sheets of an incomplete working drawing package are given in the following pages. Complete the working drawing package. [Chapter 9: Assembly Drawings] TROLLEY WHEEL 1020 STEEL 2 REQ'D INSTRUMENT BALL BEARING BORE=0.75 OD-01.825 THICKNESS 3125 2 REQD SIDE PLATE 1020 STEEL 2 REQ'D 7/8-9 UNC HEX HEAD BOLT LENGTH = 8.5 THREAD LENGTH 2.25 2 REQ'D 11/16 RETAINING RING EXTERNAL C-TYPE 2 REQ'D AXLE 1045 COLD DRAWN STEEL 2 REQ'D KEEPER PLATE 1020 STEEL 2 REQ'D 7/8-9 UNC 10-24 UNC ROUND HEAD MACHINE SCREW LENGTH = .62 4 REQ'D HEX HEAD NUT 10 2 REQ'D CROSS HEAD 7/8 PLAIN WASHER TYPE A 1020 STEEL 1 REQ'D NARROW 4 REQ'D ADJUSTING SHIM 1020 STEEL 2 REQ'D 4 PARTS LIST FIND QTY PART OR NOMENCLATURE MATERIAL NO REQ'D IDENT NO OR DESCRIPTION 1 1268-1 2 1268-2 3 1208-3 4 1268-4 5 1268-5 6 1268-6 7 SR482 8 SR482 9 HS4580 10 HS3512 11 W654 ய 12 HS9034 10 11 Name: Fill in the find numbers in the appropriate balloons and complete the part list and title block information. Date: APPROVALS DATE EGE DETAILA DRAFTER: TITLE: CHECKED: ENGINEER: THIRD ANGLE PROJECTION MATERIAL:- SIZE CAGE CODE DWG NO. REV 1268 FINISH A 0 DO NOT SCALE DRAWING SCALE: 1:4 SHEET: OF 9 10 11 2X 10-24 UNC 2x 0.91- 1.88 .94 1.126 .63 25 1.06 2.38 2.00 1.00 9.25 8.00 10 11 UNLESS OTHERWISE SPECIFIED DIM ARE IN INCHES APPROVALS DATE EGE TOL ON ANGLE 1 DRAFTER: 2PL 3.05 3PL001 TITLE: INTERPRET DIM AND TOLPER CHECKED: ASME Y14.5-2000 ENGINEER: THIRD ANGLE PROJECTION MATERIAL: FINISH:- SIZE CAGE CODE DWG NO. A DO NOT SCALE DRAWING 5 REV ° SCALE: 1:3 SHEET: OF 7 9 10 11
