السؤال

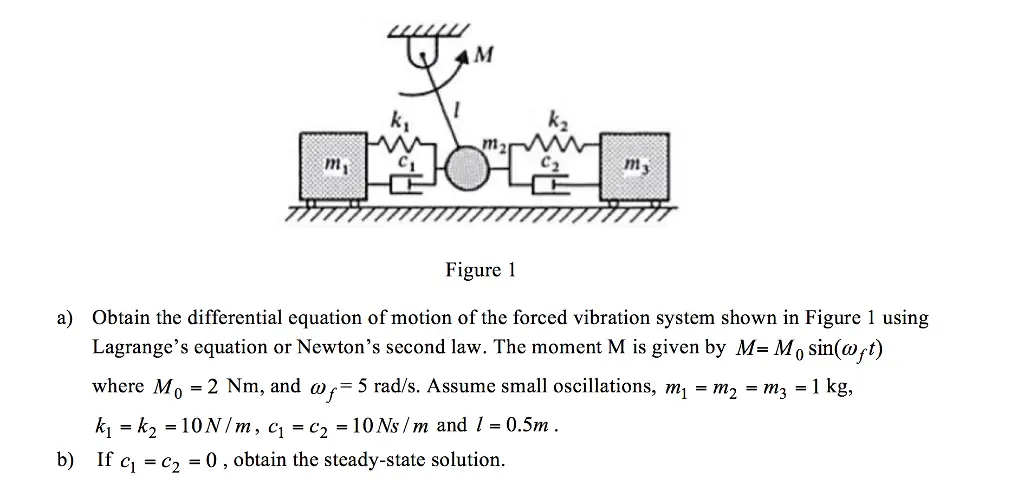

Transcribed Image Text:
k₁
m2
m₁
C₂
my
Figure 1
a) Obtain the differential equation of motion of the forced vibration system shown in Figure 1 using
Lagrange's equation or Newton's second law. The moment M is given by M= Mo sin(wft)
0
where Mo = 2 Nm, and w₁ = 5 rad/s. Assume small oscillations, m₁ = m2 = m3 = 1 kg,
k₁ =k2=10N/m, c₁ = c2 = 10 Ns/m and 1 = 0.5m.
b) If c₁ = c2 = 0, obtain the steady-state solution.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
