السؤال
Transcribed Image Text:

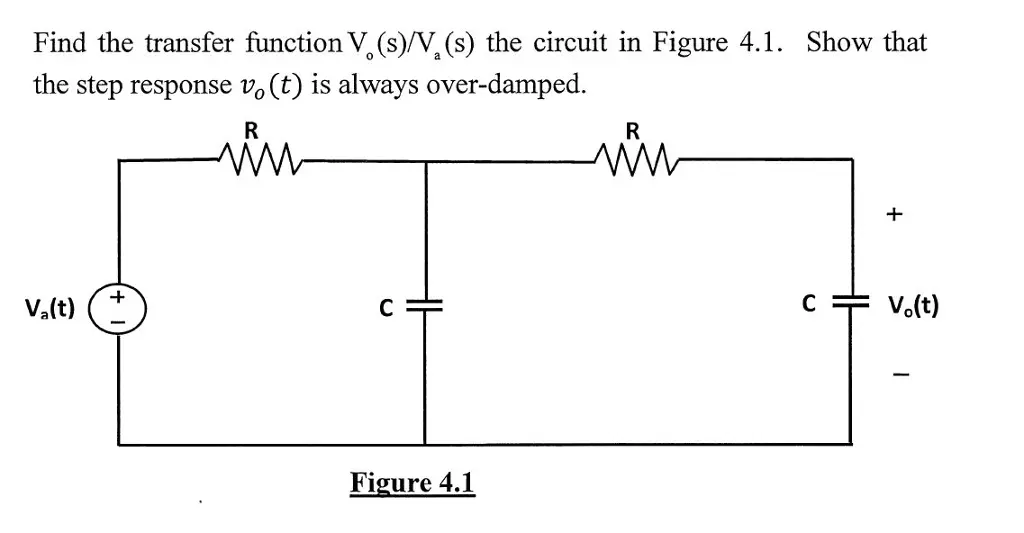

Find the transfer function V. (s)/V2 (s) the circuit in Figure 4.1. Show that
the step response vo (t) is always over-damped.
R
ww
R
ww
Va(t)
C
Figure 4.1
+
C = Vo(t)
I
