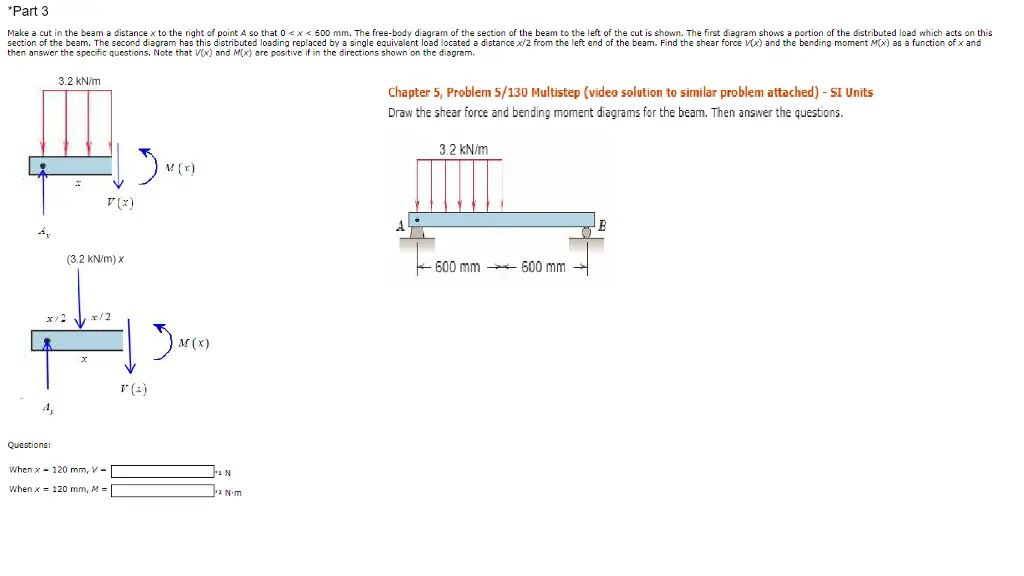

*Part 3 Make a cut in the beam a distance x to the right of point A so that 0 < x < 600 mm. The free-body diagram of the section of the beam to the left of the cut is shown. The first diagram shows a portion of the distributed load which acts on this section of the beam. The second diagram has this distributed loading replaced by a single equivalent load located a distance x/2 from the left end of the beam. Find the shear force V(x) and the bending moment M(x) as a function of x and then answer the specific questions. Note that V(x) and M(x) are positive if in the directions shown on the diagram. 3.2 kN/m V(x) M(x) (3.2 kN/m) x x/2 x/2 V(A) M(x) Questions: When x 120 mm, V- When x 120 mm, M = N N-m Chapter 5, Problem 5/130 Multistep (video solution to similar problem attached) - SI Units Draw the shear force and bending moment diagrams for the beam. Then answer the questions. 3.2 kN/m -600 mm 600 mm
