السؤال
Transcribed Image Text:

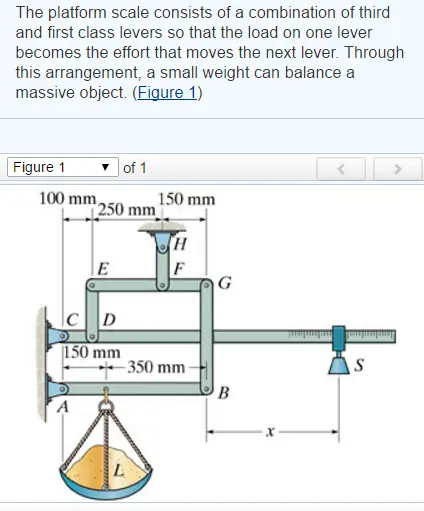

The platform scale consists of a combination of third
and first class levers so that the load on one lever
becomes the effort that moves the next lever. Through
this arrangement, a small weight can balance a
massive object. (Figure 1)
Figure 1
of 1
100 mm,
150 mm
250 mm
E
F
CD
150 mm
-350 mm
L
S
B
