السؤال

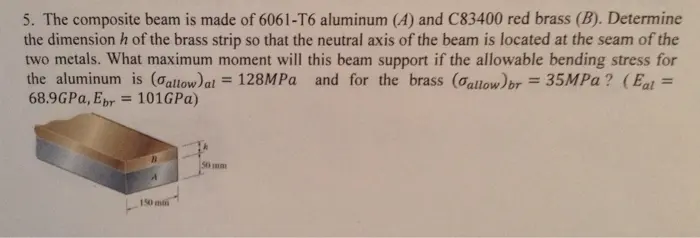

Transcribed Image Text:
5. The composite beam is made of 6061-T6 aluminum (4) and C83400 red brass (B). Determine
the dimension h of the brass strip so that the neutral axis of the beam is located at the seam of the
two metals. What maximum moment will this beam support if the allowable bending stress for
the aluminum is (allow) al 128MPa and for the brass (allow) br=35MPa? (Eal =
68.9GPa, Er = 101GPa)
=
=
150 min
50 mm
