السؤال
Transcribed Image Text:
Question A (modified based on Question 4.34)

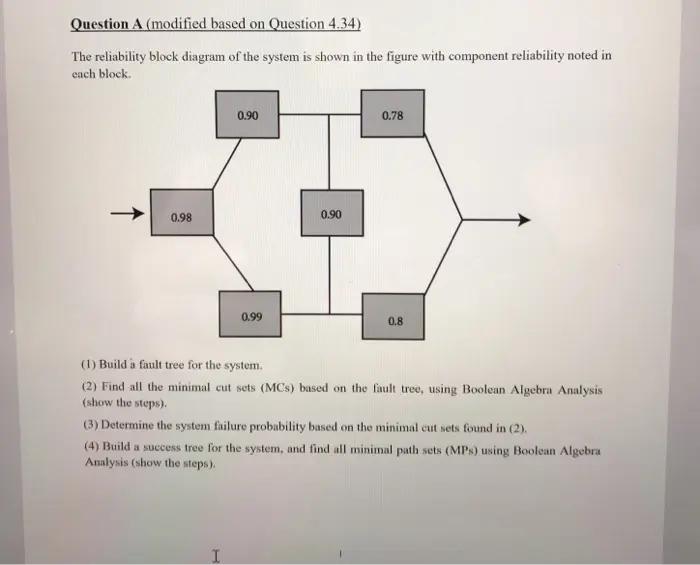

The reliability block diagram of the system is shown in the figure with component reliability noted in
each block.
↑
0.90
0.98
0.90
0.99
0.78
0.8
(1) Build a fault tree for the system.
(2) Find all the minimal cut sets (MCS) based on the fault tree, using Boolean Algebra Analysis
(show the steps).
(3) Determine the system failure probability based on the minimal cut sets found in (2).
(4) Build a success tree for the system, and find all minimal path sets (MPs) using Boolean Algebra.
Analysis (show the steps).
