السؤال
Transcribed Image Text:

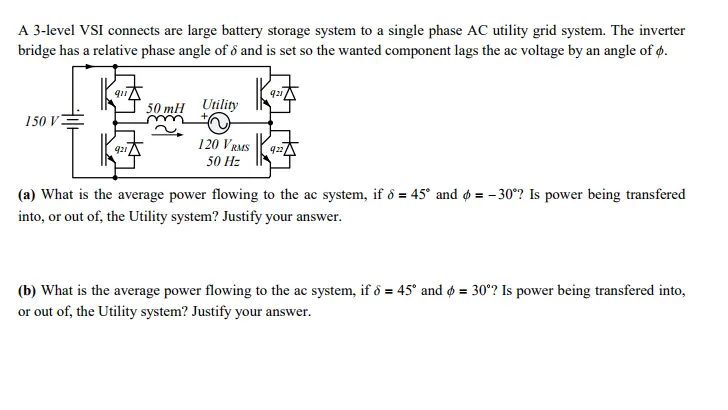

A 3-level VSI connects are large battery storage system to a single phase AC utility grid system. The inverter
bridge has a relative phase angle of ō and is set so the wanted component lags the ac voltage by an angle of o.
150 V
921
921
50 mH Utility
120 VRMS
922,
50 Hz
(a) What is the average power flowing to the ac system, if 8 = 45° and = -30°? Is power being transfered
into, or out of, the Utility system? Justify your answer.
(b) What is the average power flowing to the ac system, if 6 = 45° and 6 = 30°? Is power being transfered into,
or out of, the Utility system? Justify your answer.
