Transcribed Image Text:

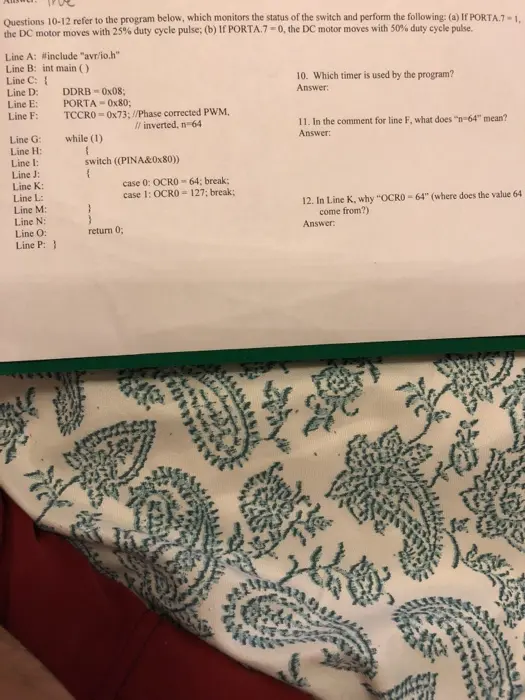

Questions 10-12 refer to the program below, which monitors the status of the switch and perform the following: (a) If PORTA.7-1,
the DC motor moves with 25% duty cycle pulse; (b) If PORTA.7-0, the DC motor moves with 50% duty cycle pulse.
Line A: #include "avr/io.h"
Line B: int main()
Line C: {
Line D:
Line E:
Line F:
DDRB 0x08;
PORTA-0x80;
TCCRO 0x73; //Phase corrected PWM,
// inverted, n-64
switch ((PINA&0x80))
Line G:
while (1)
Line H:
(
Line 1:
Line J:
(
Line K:
Line L:
Line M:
}
Line N:
}
Line O:
return 0;
Line P:}
case 0: OCR0
64; break;
10. Which timer is used by the program?
Answer:
11. In the comment for line F, what does "n-64" mean?
Answer:
case 1: OCR0-127; break;
12. In Line K, why "OCRO-64" (where does the value 64
come from?)
Answer:
