السؤال
Transcribed Image Text:
Prob. 3

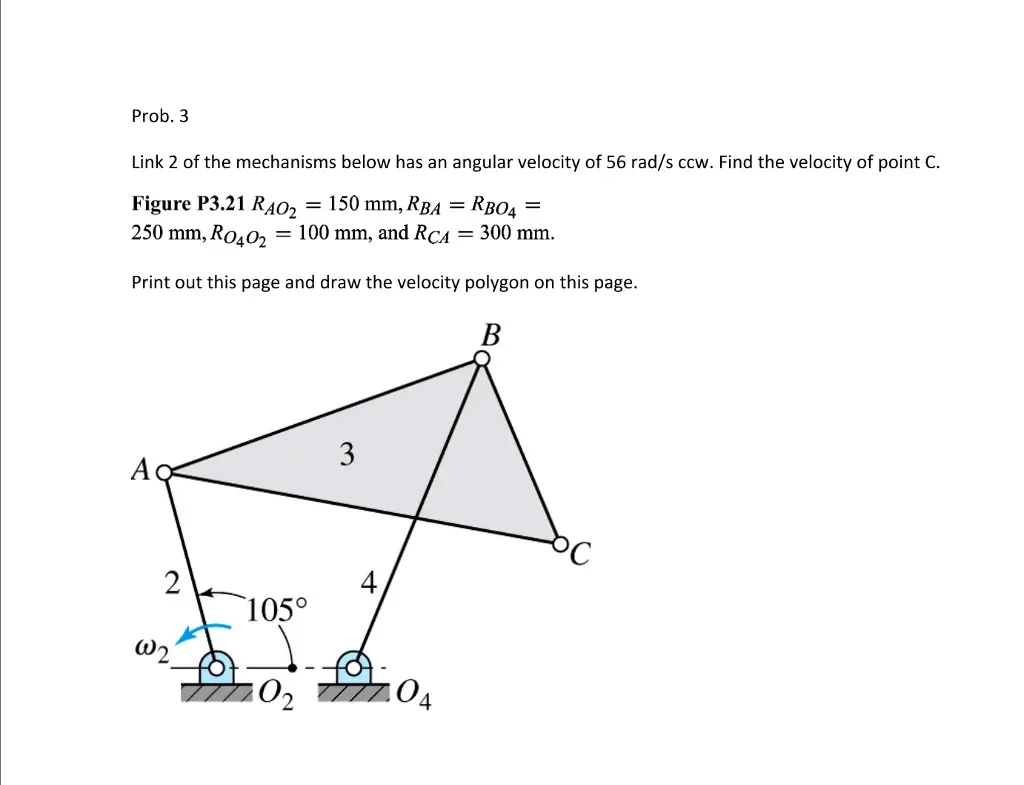

Link 2 of the mechanisms below has an angular velocity of 56 rad/s ccw. Find the velocity of point C.
Figure P3.21 RAO₂ = 150 mm, RBA = RBO4 =
250 mm, R0402 = 100 mm, and RCA = 300 mm.
Print out this page and draw the velocity polygon on this page.
3
Ao
2
105°
W2
104
B
