السؤال

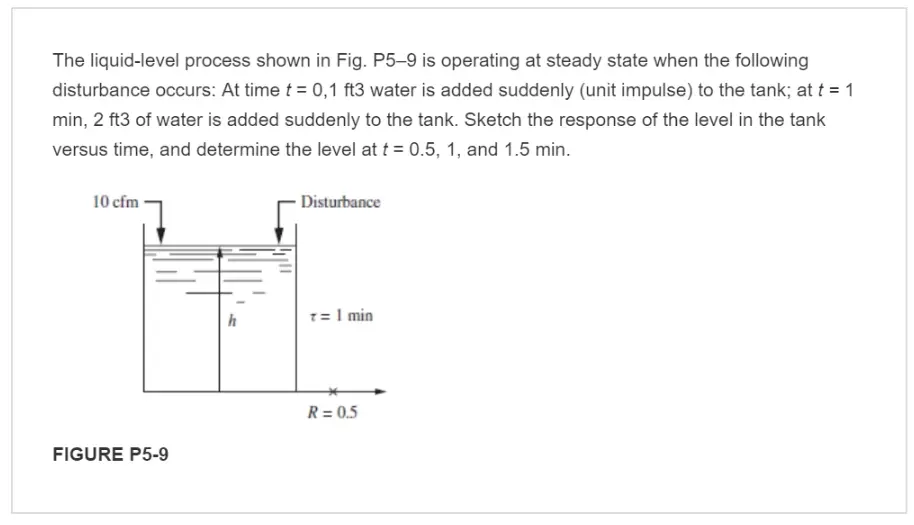

Transcribed Image Text:
The liquid-level process shown in Fig. P5-9 is operating at steady state when the following
disturbance occurs: At time t = 0,1 ft3 water is added suddenly (unit impulse) to the tank; at t = 1
min, 2 ft3 of water is added suddenly to the tank. Sketch the response of the level in the tank
versus time, and determine the level at t = 0.5, 1, and 1.5 min.
10 cfm
FIGURE P5-9
Disturbance
h
T = 1 min
R = 0.5
