السؤال
Transcribed Image Text:

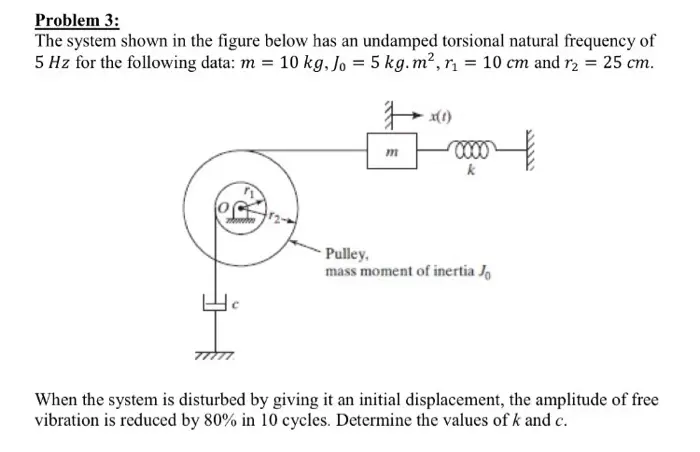

Problem 3:
The system shown in the figure below has an undamped torsional natural frequency of
5 Hz for the following data: m = 10 kg, Jo = 5 kg. m², r₁ = 10 cm and r2 = 25 cm.
E
x(t)
0000
Pulley,
mass moment of inertia Jo
When the system is disturbed by giving it an initial displacement, the amplitude of free
vibration is reduced by 80% in 10 cycles. Determine the values of k and c.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
