السؤال
Transcribed Image Text:

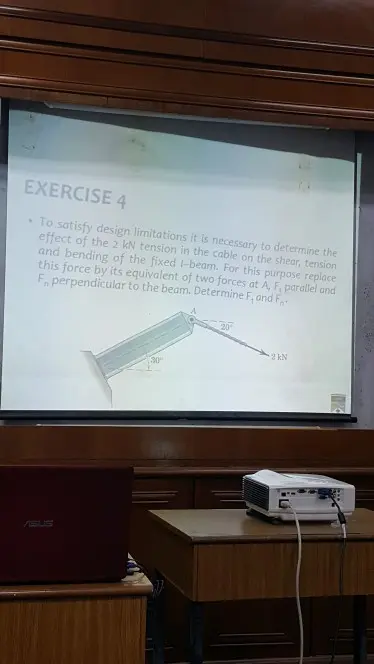

EXERCISE 4
⚫To satisfy design limitations it is necessary to determine the
effect of the 2 kN tension in the cable on the shear, tension
and bending of the fixed I-beam. For this purpose replace
this force by its equivalent of two forces at A, F, parallel and
F, perpendicular to the beam. Determine F, and F.
20°
US
30
2 kN
