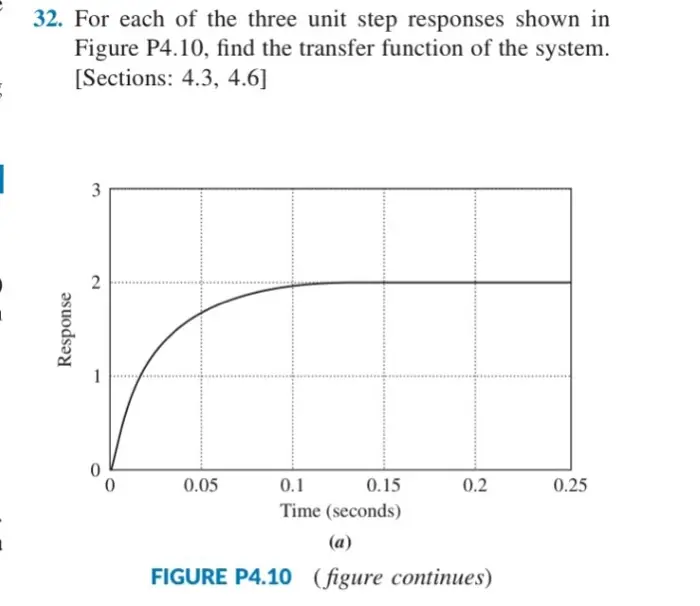

32. For each of the three unit step responses shown in
Figure P4.10, find the transfer function of the system.
[Sections: 4.3, 4.6]
2
3
3
0
0
0.05
0.1
0.15
0.2
0.25
Time (seconds)
(a)
FIGURE P4.10 (figure continues)
