السؤال
Transcribed Image Text:

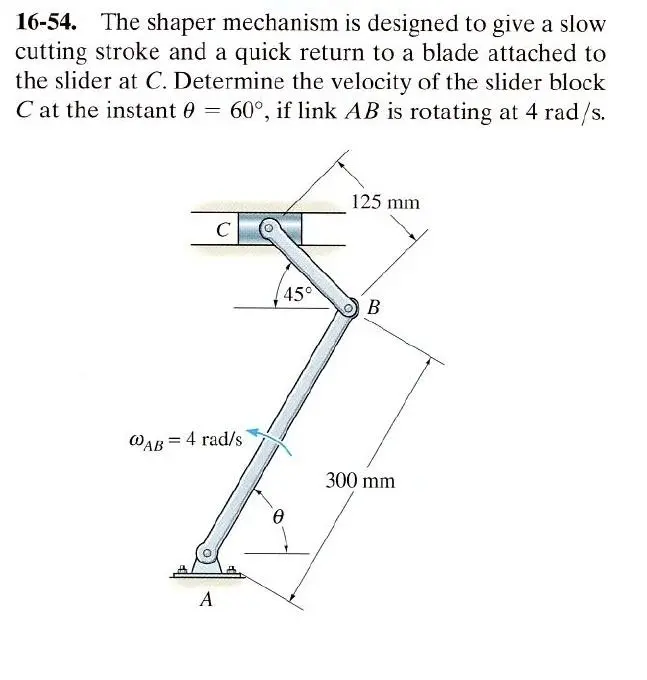

16-54. The shaper mechanism is designed to give a slow
cutting stroke and a quick return to a blade attached to
the slider at C. Determine the velocity of the slider block
C at the instant 0 = 60°, if link AB is rotating at 4 rad/s.
C
= 4 rad/s
@AB=
A
125 mm
45°
B
Ꮎ
300 mm
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
