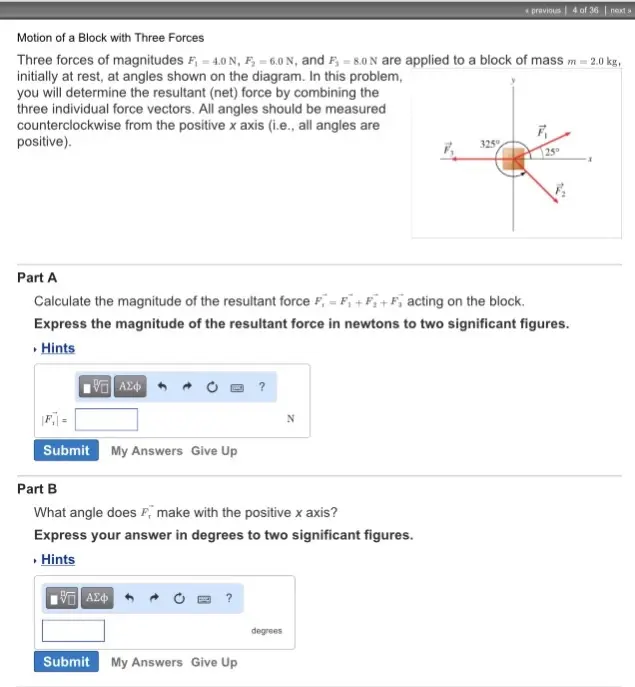

previous 4 of 36 | next » Motion of a Block with Three Forces Three forces of magnitudes F, 4.0 N, F = 6.0 N, and F, 8.0 N are applied to a block of mass m = 2.0 kg, initially at rest, at angles shown on the diagram. In this problem, you will determine the resultant (net) force by combining the three individual force vectors. All angles should be measured counterclockwise from the positive x axis (i.e., all angles are positive). 325° 25 Part A Calculate the magnitude of the resultant force FF+F+F, acting on the block. Express the magnitude of the resultant force in newtons to two significant figures. Hints ΜΕ ΑΣΦ N Submit My Answers Give Up Part B What angle does F, make with the positive x axis? Express your answer in degrees to two significant figures. ▸ Hints ΜΕ ΑΣΦ ? Submit My Answers Give Up degrees Part C What is the magnitude of the block's acceleration vector, «? Express your answer to two significant figures. ▸ Hints ΜΕ ΑΣΦ a- ? m/s² Submit My Answers Give Up Part D What is the direction of a? In other words, what angle does this vector make with respect to the positive x axis? Express your answer in degrees to two significant figures. Hints ΜΕ ΑΣΦ ? degrees Submit My Answers Give Up Part E How far (in meters) will the block move in 5.0 ? Recall that it starts from rest. Express the distance d in meters to two significant figures. ▸ Hints ΜΕ ΑΣΦ Submit My Answers Give Up ?
