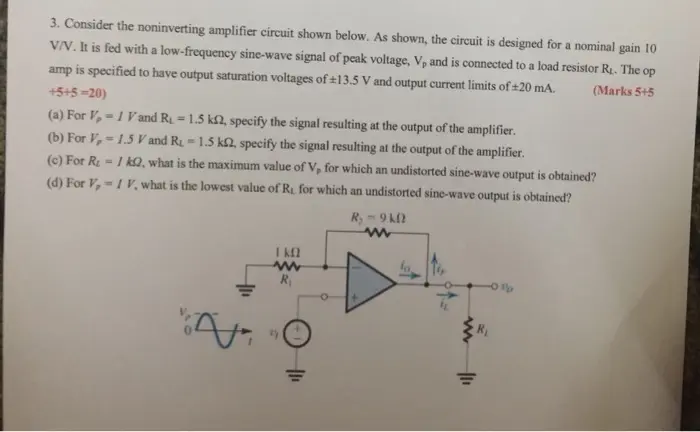

3. Consider the noninverting amplifier circuit shown below. As shown, the circuit is designed for a nominal gain 10 V/V. It is fed with a low-frequency sine-wave signal of peak voltage, V, and is connected to a load resistor R₁. The op amp is specified to have output saturation voltages of +13.5 V and output current limits of +20 mA. +5+5=20) (a) For V, IV and R₁ = 1.5 k2, specify the signal resulting at the output of the amplifier. (b) For V, 1.5 V and RL-1.5 kn, specify the signal resulting at the output of the amplifier. (Marks 5+5 (c) For R-1 kQ, what is the maximum value of V, for which an undistorted sine-wave output is obtained? (d) For V, IV, what is the lowest value of R₁ for which an undistorted sine-wave output is obtained? R-9k ة" www R₁ " O 90
