السؤال
Transcribed Image Text:

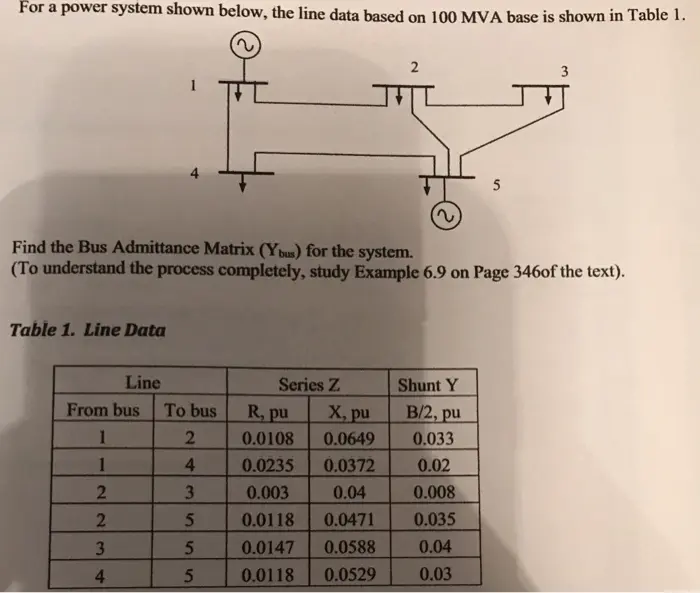

For a power system shown below, the line data based on 100 MVA base is shown in Table 1.
2
5
3
Find the Bus Admittance Matrix (Ybus) for the system.
(To understand the process completely, study Example 6.9 on Page 346of the text).
Table 1. Line Data
Line
Series Z
Shunt Y
From bus
To bus
R, pu
X, pu
B/2, pu
1
2
0.0108
0.0649
0.033
1
4
0.0235
0.0372
0.02
2
3
0.003
0.04
0.008
23
5
0.0118
0.0471
0.035
5
0.0147
0.0588
0.04
4
5
0.0118 0.0529
0.03
