السؤال
Transcribed Image Text:

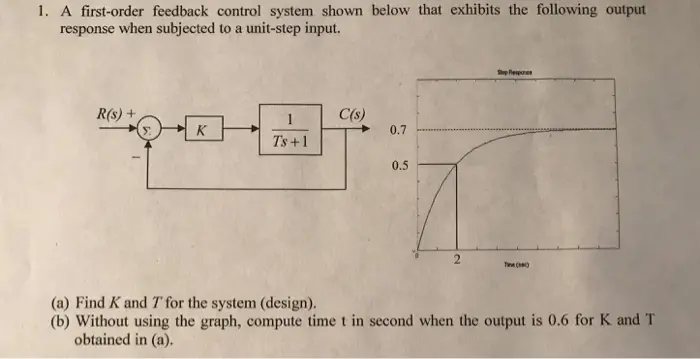

1. A first-order feedback control system shown below that exhibits the following output
response when subjected to a unit-step input.
R(s) +
K
--M
Ts+1
C(s)
0.7
20
0.5
Time()
(a) Find K and 7 for the system (design).
(b) Without using the graph, compute time t in second when the output is 0.6 for K and T
obtained in (a).
